2x2 Motorcycle Build Plans.
How much fun is it to go off-road on an ATV? Ever since I was a child, I always wanted to build my own 2×2 off-road motorcycle, and now, build plans are offered here.

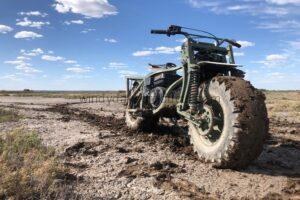

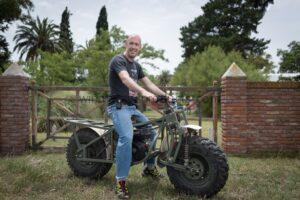

This 2×2 is capable of slicing through rough terrain like mud, swamps, snow, and mountains without hesitation. It can also navigate where four-wheel ATVs cannot, thanks to its compact, lightweight design. Weighing around 100 kg, it can be broken down in less than five minutes and stored in the trunk of a car.
It is ideal for fans of hunting, fishing, tourism, and active recreation in nature.

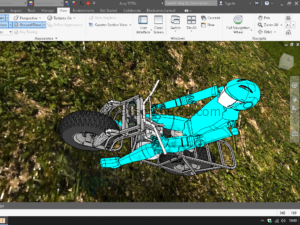

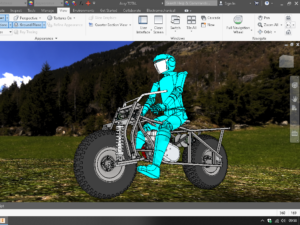

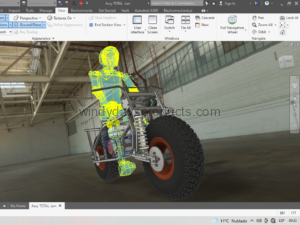

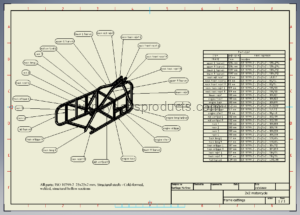

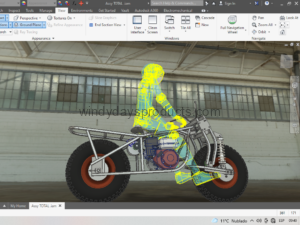

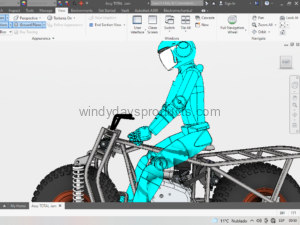

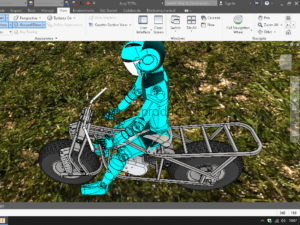

You can easily build this 2×2 motorcycle yourself with these comprehensive plans. I’ll give you the 3D CAD drawings and dimensions of every part that needs to be made, along with lists of materials, cutting lists, and detailed construction instructions. Every assembly, part, bolt, nut, and washer is listed. Everything you need to build your own 2×2 motorcycle.

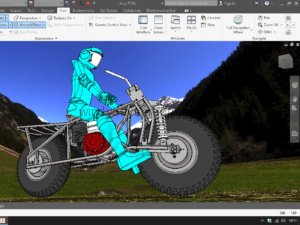

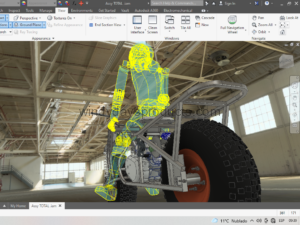

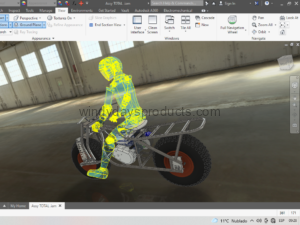

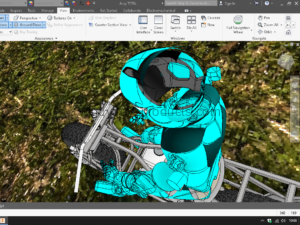

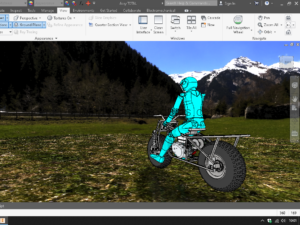

Plans and instructions are clear and very easy to follow. These are high-quality CAD designs (Autodesk Inventor) exported to PDF format for easy reading and printing with Adobe Reader.
You will really enjoy building and riding this beast!
2×2 Motorcycle Technical Specifications:
Engine: 4-stroke, gasoline powered (e.g., Honda GX-200)
Displacement: 200 cc
Horsepower: 7 hp
Transmission: 2×2, #428 chain
Starting System: Pull cord
Drivetrain: CVT
Fuel Tank Capacity: 4 liters (approx. 3 working hours)
Brake: Hydraulic disc brake
Tire Size: 25×8-12
Rim Size: 12×6
Tire Pressure: 3–5 PSI
Weight: Approx. 100 kg
Towing Capacity: 600 kg
Suspension: Leading link fork
Features: Fast folding capability
Dimensions: Length 1950 mm | Width 750 mm | Seat height 750 mm
Wheelbase: 1300 mm
Ground Clearance: 280 mm
This 2×2 motorcycle is designed for 5–7.5 hp industrial engines. These engines offer fantastic reliability, coupled with the convenience of an automatic transmission (torque converter)
Get the 2x2 Motorcycle Build Plans!
Get the 2×2 Motorcycle complete build package:

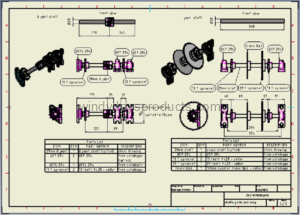

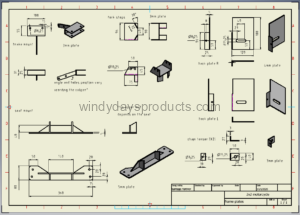

Detailed construction plans, assemblies, part dimensions, material lists, and instructions (PDF)
Front suspension plans: leading link fork
BONUS: Tube Bender build plans (PDF)
Price: USD 43
An All-Terrain Vehicle... A Utility Vehicle... A Force Multiplier... All in one.

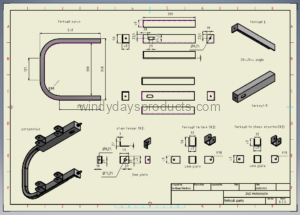

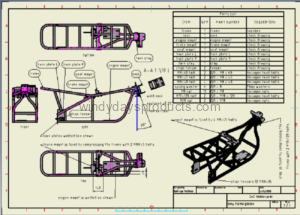

I have detailed every bar in the frame, calling out all angles, dimensions, and bend radii. The manual includes step-by-step progressive construction drawings with sub-assemblies, weldments, bending details, angles, etc. Basically, you start at the beginning of the plans and work your way through step-by-step.

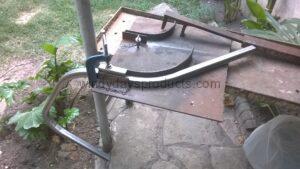

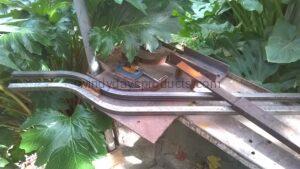

The frame is made of 25 mm × 25 mm (1″ × 1″) square tubing, so as a first step to building this motorcycle, a simple but effective tube bender has to be built. But don’t worry, the tube bender plans are also included and that won’t take more than 2 hours of your time.
As always, I look forward to helping you with your project. If you have any questions during construction, just contact me.
