Wind Kart build Plans. Are you looking for emotions ?

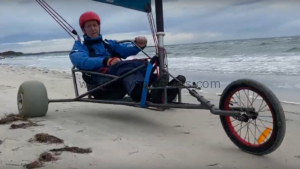

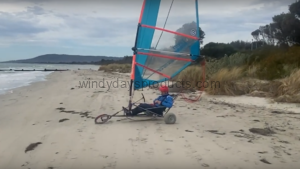

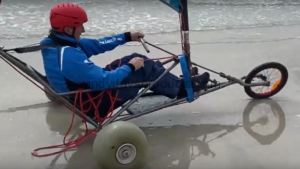

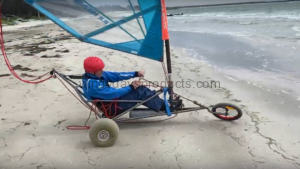

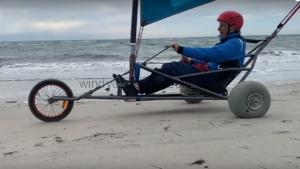

Windkarts are intended and designed to have a big dose of sportiness. Low weight combined with their ability to quickly change direction, make these vehicles extremely fun to ride.

This particular model has been integrally calculated considering the sail tester results (click on “The Sail Tester” button above), so respect the given dimentions and you will achieve two-wheel-ride after some practice…

Now you can build the windkart yourself with these comprehensive plans. I’ll give you the 3D CAD drawings and dimensions of every part that needs to be made, along with lists of materials, cutting lists and detailed building instructions. Everything you need to build your own windkart. Plans and instructions are clear and are very easy to follow.

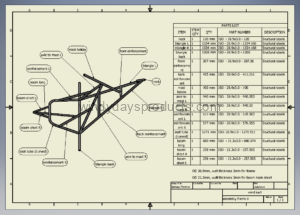

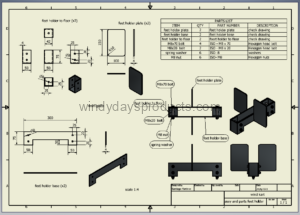

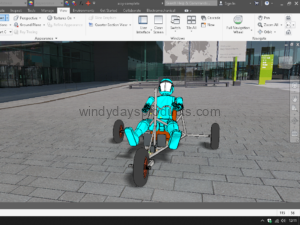

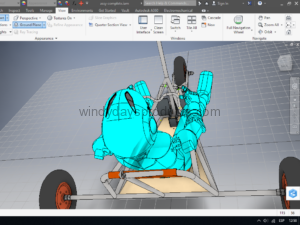

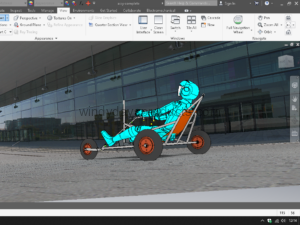

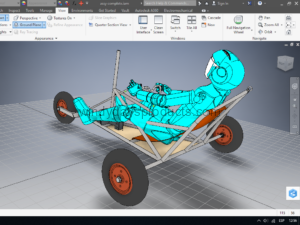

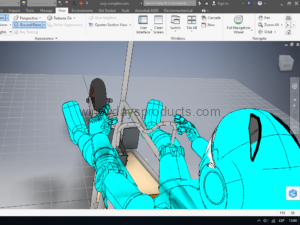

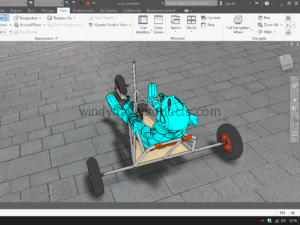

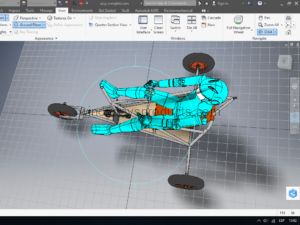

I have detailed every bar in the frame calling out all angles, dimensions and bend radius. These plans are high quality C.A.D designs (Autodesk-INVENTOR). They have been formatted to be read using adobe reader.

To make your project possible, you just need to know how to cut material to specified sizes, drill holes and fabricate the frame and parts. To put the windkart together you are also going to need to know how to weld, but I assure you that once you start you won’t see the hour to finish it and ride it..!

I look forward to helping you with your project. If for any reason during construction you have a question, just contact me.

Get the Windkart Build Plans

GET the Wind Kart complete and detailed construction plans, instructions and lists of materials (.pdf)

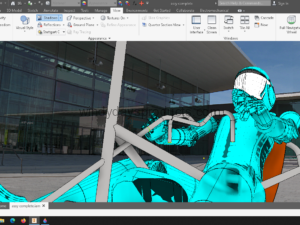

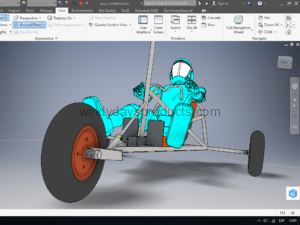

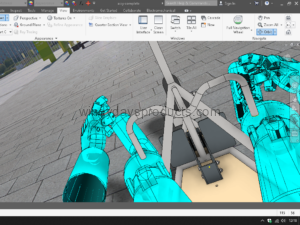

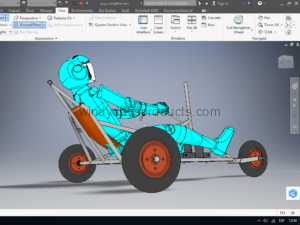

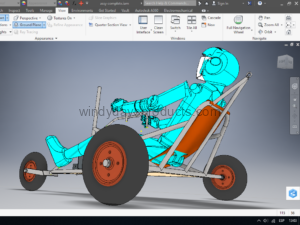

PLUS high quality CAD renders (.pdf)

-U$S 24-

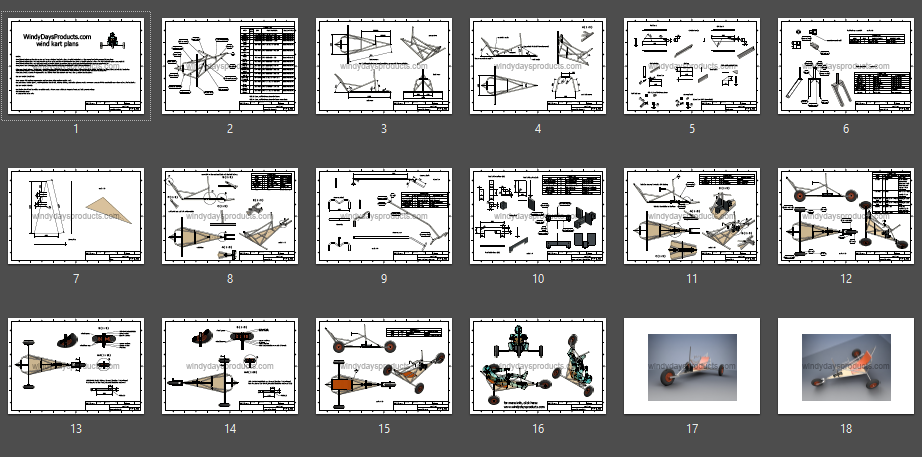

The manual include step-by-step progressive construction drawings with sub-assemblies, weldments, bending details, angles etc… Basically, you start at the beginning of the plans & work your way through step-by-step. Frame drawings show you how to start by making a tube frame and then progressively build upon that starting point.

All materials are readily available worldwide. Notches have to be made to build this kart frame. Lathe work is NOT needed for this project.
